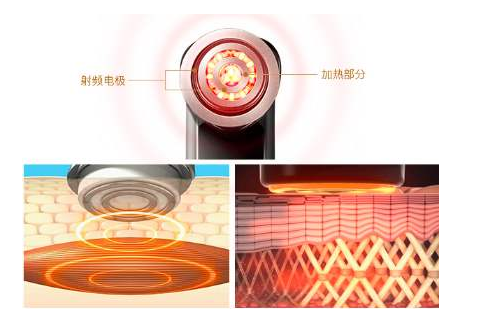

射頻 radio frequency簡稱RF，是一種高頻交流變化的電磁波，頻率範圍從3k Hz-3k GHz
由於頻率高，所以分子運動速度快，而物體的熱在物理學上的解釋百就是它內部分子運動的速度，利用射頻能量使分子高度速運動理所當然的會達到加熱的目的
基本介紹
- 中文名：射頻加熱
- 外文名：radio frequency
- 簡稱：RF
- 性質：高頻交流變化的電磁波
加熱方式,1.Dielectric heating,2.Induction heating,射頻範圍,
加熱方式
射頻加熱 RF-Heating
有兩種方式(wiki的解釋) ：
1,dielectric heating
2,Induction heating
1.Dielectric heating
Dielectric heating (also known as electronic heating, RF heating, high-frequency heating) is the phenomenon in which radiowave or microwave electromagnetic radiation heats a dielectric material, especially as caused by dipole rotation.
There are two principal mechanisms by which a non-conductive material can be warmed in an EM field:
Electrical conduction: current flow in the oscillating electric field allows the material to absorb energy as heat. Since current flow implies that the material is not an electrical insulator this is rarely considered true dielectric heating.
Dipole rotation: Molecular rotation occurs in materials containing polar molecules having an electrical dipole moment, which will align themselves in the field by rotating; as the field alternates, the molecules reverse direction and accelerate the motion of individual molecules or atoms. Heat is a form of energy possessed by a substance by virtue of the vibrational movement, i.e. kinetic energy, of its molecules or atoms.
Dipole rotation is the mechanism normally referred to as dielectric heating, and is most widely observable in the microwave oven where it operates most efficiently on liquid water, and much less so on fats, sugars, and frozen water. The reason is that fats and sugars are far less polar than water molecules, and are thus less affected by the forces generated by the alternating electromagnetic fields. Meanwhile, frozen water molecules are fixed in place in a crystal lattice, and cannot freely rotate and absorb heat from molecular friction. Outside of cooking, the effect can be used to heat solids, liquids, or gases (see states of matter).
Communication microwave frequencies penetrate semi-solid substances like meat, and living tissue to a distance proportional to its power density. Some environmentalists are concerned that the widespread adoption of microwave-emitting mobile phones could harm human and animal health through dielectric heating
ref: Metaxas, A. C. (1996). Foundations of Electroheat, A Unified Approach
2.Induction heating
A semiconductor induction heater with a small inductorInduction heating is the process of heating a metal object by electromagnetic induction, where eddy currents are generated within the metal and resistance leads to Joule heating of the metal. An induction heater (for any process) consists of an electromagnet, through which a high-frequency Alternating current (AC) is passed. Heat may also be generated by magnetic hysteresis losses.
Contents
1 Applications of induction heating
1.1 Induction furnace
1.2 Induction welding
1.3 Induction cooking
1.4 Induction sealing
1.5 Heat treatment
2 Details
3 Notes
4 Further reading
5 External links
1 Applications of induction heating
Induction heating allows the precision heating of an applicable item, for applications from surface hardening to melting. Often, iron and its alloys respond best to induction heating, due to their ferromagnetic nature. Eddy currents can, however, be generated in any conductor, and magnetic hysteresis can occur in any magnetic material.
1.1 Induction furnace
An induction furnace uses induction to heat a metal to its melting point. Once molten, the high-frequency magnetic field can also be used to stir the hot metal, which is useful in ensuring that alloying additions are fully mixed into the melt. Most induction furnaces consist of a tube of water-cooled copper rings, surrounding a container of refractory material. Induction furnaces are used in most modern foundries, as a cleaner method of melting metals than a reverberatory furnace or a cupola. Sizes range from a kilogram of capacity, to a hundred tonnes capacity. Induction furnaces often emit a high-pitched whine or hum when they are running, depending on their operating frequency. Metals melted include iron and steel, copper, aluminium, and precious metals.
1.2 Induction welding
A similar, smaller-scale process is used for induction welding. Plastics may also be welded by induction, if they are either doped with ferromagnetic ceramics (where magnetic hysteresis of the particles provides the heat required) or by metallic particles.
1.3 Induction cooking
In induction cooking, an induction coil in the cook-top heats the iron base of cookware. Copper bottomed pans, aluminium pans and most stainless steel pans are not suitable.
The heat induced in the base is transferred to the food via conduction. Benefits of induction cookers include efficiency, safety (the induction cook-top is not heated itself) and speed. Drawbacks include the fact that non-ferrous cookware such as copper, aluminium and glass cannot be used on an induction cook-top. Both installed and portable induction cookers are available.
1.4 Induction sealing
Induction heating is often used in Induction sealing or "cap sealing".
1.5 Heat treatment
Induction heating is often used in the heat treatment of metal items. The most common applications are induction hardening of steel parts and induction soldering/brazing as a means of joining metal components. Induction heating can produce high power densities which allow short interaction times to reach the required temperature. This gives tight control of the heating 'pattern' with the pattern following the applied magnetic field quite closely and allows reduced themal distortion and damage. This ability can be used in hardening to produce parts with varying properties. The most common hardening process is to produce a localised surface hardening of an area that needs wear-resistance, while retaining the toughness of the original structure as needed elsewhere. The depth of induction hardened patterns can be controlled through choice of induction-frequency, power-density and interaction time. There are limits to the flexibility of the process - mainly arising from the need to produce dedicated inductors for many applications. This is quite expensive and requires the marshalling of high current-densities in small copper inductors, which can require specialized engineering and 'copper-fitting'.
Details
The basic setup is an AC power supply that output electricity with low voltage but very high current and high frequency. The workpiece to heat is placed inside an air coil driven by the power supply. The alternating magnetic field induces eddy currents in the workpiece.
射頻範圍
Frequency [kHz] Workpiece type
5 - 30 Thick materials
100 - 400 Small workpieces or shallow penetration
480 Microscopic pieces
Magnetic materials improve the induction heat process because of hysteresis. In essence materials with high permeability (100-500) are easier to heat with induction heating. Hysteresis heating occurs below the curie temperature where materials loose their magnetic properties.
So high permability and temperatures below curie temperature in the workpiece is useful. Also temperature difference, mass, and specific heat influence the workpiece heating.
The energy transfer of induction heating is coupled to the distance between the coil and the workpiece. Energy losses occur through heat conduction from workpiece to fixture, natural convection, and thermal radiation.
The induction coil is usually made of 3.175 mm - 4.7625 mm diameter copper tubing and fluid cooled. Diameter, shape, and number of turns influence the efficiency and field pattern.
