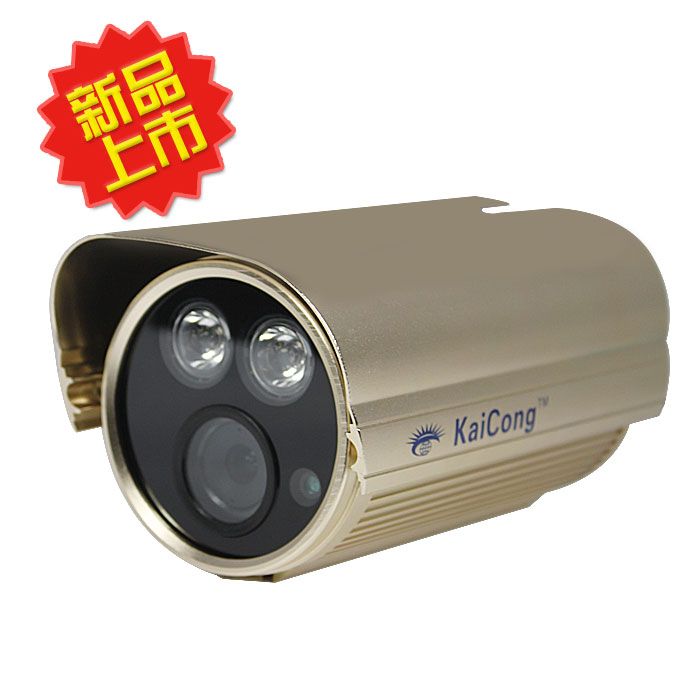

SIP1121是一款H.264編碼的網路攝像機,畫面效果清晰透徹,200萬像素,高清解析度,視頻檔案體積小,便於網路傳輸,防水外殼,IP66防水等級;IRCUT雙濾光片,根據光線大小自動切換,第四代LED發光技術,雙燈陣列,聚焦強、散射小、最大夜視距離達到100米,白天色彩鮮艷,夜視明亮透徹。
簡述,主要特點,性能簡介,
簡述
主要特點
IP66級別防水性能
超過80米的陣列夜視距離最高解析度:1600×1200 pix
32位處理器以及具有百萬像素處理能力的專業視頻編解碼晶片;
採用H.264 壓縮格式,圖像更清晰,碼流更小,便於網路傳送以及節省存儲空間;
支持720P(1280*720)/D1/(640x480) / (320x240) / (160x120)可選支持各種視頻
參數的調整,適套用戶各種瀏覽要求;
內置WEB SERVER(網頁伺服器),支持IE瀏覽和參數設定;
使用一個連線埠傳送所有數據,便於用戶進行網路設定;
支持802.11b/g/n協定,內置wifi模組,靈活組建無線監控環境;
可實現移動偵測拍照和移動偵測錄像;
支持多區域移動幀測、並可外接告警探測器,實現對現場全方位布防;
郵件、FTP方式保存現場告警記錄,外接報警器發出報警通知,還可向報警伺服器傳送報警信息,實現了多種告警聯動;
支持手機觀看;凱聰推出了免費的安卓客戶端,IOS設備用戶,推薦通過Safari觀看。
支持三級用戶許可權設定;
支持遠程升級。
性能簡介
H.264核心技術
採用最新研發的信號處理器(CCD);配合H.264核心算法壓縮碼流、超低碼流節省寬頻、更適於網路傳輸。
百萬高清解析度
真正的百萬高清,解析度可達1280x720P;高清畫質、不論是色彩還是飽和度清晰度、足可媲美專業的數位相機、自動調整至最佳狀態。
雙燈陣列
採用第四代高亮度、點陣式紅外燈。紅外光束髮散小、遠距無損耗;強勁紅外、夜視無敵清晰。
獨享高新科技
自帶凱聰DDNS、可直接通過域名外網訪問監控畫面;
設備一鍵通用
獨家研發的UPNP技術、設備可在一個集中監控軟體中登入使用。
Mainfeatures
· Waterproof performance (IP66), able toprotect the camera from rainy corrosion, suit for all-weather usage.
· H series HD ip camera
· The night vision distance exceeds 80meters
· The highest resolution:1600×1200 pix
· 32bits processor, Megapixel processingability, professional video encoder chip【Hi3507】
· H.264 Main [email protected] algorithm using the widely used compression formats, stream smaller, easynetwork transmission and saves storage space;compared with before, saving 2/3 WB space.
· support 1080P (1600 * 1080),(the mostadvanced technology and highest resolution)/720P(1280*720)/D1(640*480)/(320*240)/(160*120),real-time video encoding;
· Support optional video parameter setting,suit for various view requirements.
· Built-in WEB SERVER, support IE browserand parameter settings.
· Use one port to send all the data, it iseasy for you to do network setting.
· Motion detection photographs and motiondetection recording.
· Support for multi-regional mobile framemeasured, and an external alarm detector, achieve all-roundarm on the scene;
· Alarming records are saved by mail and FTPmode, alarm information can also be sent to the alarm server, achieve multiplealarm linkage.
· Support mobile phone viewing, KaiCong haspublished a free Android client, IOS client user, we suggest you to view bySafari, Firefox.
· Support three grades of users permissionssettings;
· Support remote upgrade; [upgrade firmwarewill be published on a regular basis in the KaiCong official forum upgradeprocess all free];
· KaiCong for each device has assigned a unique device serial number [KaiCong.info end],only KaiCong domain name burned into the device, the device connected to thepublic network, you can access the device byusing the domain name;
· KaiCong provides anaccount to manage all the capabilities of the KaiCong device [including DVRs, network cameras, network DVRs, video capture cards].
· KaiCong provides a free centralized client software, tosupport 100 screens from different places, long time recording,video playback and other functions [All KaiCong software are free]CMS4.0 version at present.
